Special offer on Audi Key Programming Device + VAG Turbo Decoder HU66 GEN 2/6 just for 3400 EUR. Normal price is 3450 EUR and you save 50 EUR with our special offer!
AUDI A6/Q7/All Road Key Programming Device
The AUDI key learning device is developed to program keys for AUDI A6/Q7/All Road vehicles from 2004 till 2011 and AUDI Q7 from 2004 till 2014. The device will work on cars equipped with EDC16/EDC17/MED9/MED17 engine control unit. The key learning device is equipped with a key programmer which allows to pre code blank keys by the security info from the car and program it at the same time to the vehicle so you can start it and operate with the remote key. It is also possible to program only transponder for this type of vehicles. The device can program from 1 to 4 keys to the vehicle.
Special offer on AUDI A6/Q7/All Road Key Programming Device + VAG Turbo Decoder HU66 GEN 2/6 just for 3500 EUR. Normal price is 3550 EUR and you save 50 EUR with our special offer!
Turbo Decoder for VAG with HU66 key profile GEN 2/6
This tool is specially designed to open the door locks and ignition lock of different vehicles in non destructive way. After you decode and open the lock then you can read the key combination from the tool and cut a key that will open and close the locks and will turn the ignition.
Warranty only after personal training from an authorized dealer or manufacturer.
Turbo Decoder for VAG with HU66 key profile GEN 1
This tool is specially designed to open the door locks and ignition lock of different vehicles in non destructive way. After you decode and open the lock then you can read the key combination from the tool and cut a key that will open and close the locks and will turn the ignition.
Warranty only after personal training from an authorized dealer or manufacturer.

The Abrites diagnostics for VW/Audi/Seat/Skoda is a software application designed to provide basic and advanced diagnostic functionality for the vehicles of the VAG group – Audi, Volkswagen, Seat, Skoda and Bentley (some Lamborghini and Porsche models are also included).
The comprehensive software interface and nearly unlimited capabilities make it a leader in the aftermarket diagnostics world.
Apart from the features of the basic diagnostics, including reading and clearing of diagnostic trouble codes, module identification and extended identifications, coding, module software updates, custom requests and more, the Abrites diagnostics for VAG can perform almost any action available using the additional special functions. Such options include key learning for almost every model produced by Volkswagen, Audi, Seat, Skoda and Bentley regardless of the immobilizer, cluster or ECU type. These functions are simple to use and have guidance and explanation for every step of every procedure in situations where only one key needs to be added or all keys are lost. Compared to main dealer tools the procedures are easier, faster and more cost effective.
However key learning is not the only field of advanced diagnostics where the Abrites diagnostics for VAG excels. Module adaptation is another part of the software where there is simply nothing that comes close. When an electronic module in a vehicle from the VAG group fails in the majority of cases even main dealers replace the module with a brand new one. On the other end of the scale you have the Abrites Diagnostics for VAG which can replace most modules with used ones. You can perform reading and updating of flash and EEPROM from the modules allowing complete exchange.
The Abrites diagnostics for VAG can also perform mileage recalibration for most modules as well.
When a second hand module needs to be adapted the situation is often such that it comes from a car with different odometer readings. In these cases the Abrites diagnostics for VAG can adapt the odometer readings of the modules in order for them to become a complete part of the vehicle.
Depending on our customer's field of expertise we can provide different solutions.
If you are interested in our locksmith products we have key packages according to our customer's individual needs.
The Abrites diagnostics for VW/Audi/Seat/Skoda requires the usage of the Abrites Vehicle Diagnostics Interface in order to interface between the computer, where the software is installed and the vehicle.
Highlights:
Standard diagnostic functions:
- The set consist of “AVDI diagnostic interface”, PC-Windows based software with general diagnostic functions such as displaying/clearing DTCs, measured values (live data) display, actuator tests and basic coding/configuration functions. Covered vehicle brands are Audi, Volkswagen, Seat, Skoda, Bentley, BMW, Mini, Porsche, Opel, Vauxhall, Toyota, Lexus, Scion, Mercedes, Smart, Maybach, Renault, Mitsubishi, Hyundai, Kia, Fiat, Alfa, Lancia, Peugeot, Citroen, Chrysler, Jeep, Dodge, Ford, Mazda, Volvo. PassThru (SAE J2534) compatible driver will allow usage of 3-rd party software provided by the vehicle manufacturers ( i.e .IDS - Land Rover /Jaguar, Techstream – Toyota /Lexus / Scion, GDS2 and Tech2Win – GM/OPEL, BMW, Mini, Volvo ….). Some special diagnostic functions are included in the package such as updating flashing counters in the ECUs EDC16 (VAG - AN008), TV on/off configuration (VAG – AN011), access/update to the flash memory of ECU (VAG EDC15/EDC16 – AN015) When buying the AVDI interface you will receive one year free updates of all applications from the basic diagnostic suite.
- 12 months access to the latest software releases and online services
Your initial purchase of AVDI interface includes one year software update of the basic diagnostic suite, tools and our online services. To keep up to date your software applications and maintain usage of our online services we recommend the Annual Maintenance Subscription. Annual Maintenance Subscription is a renewable one year subscription. Annual Maintenance Subscription does not provide any support coverage this is provided separately by the Support Plan.
Activate AMS is required to purchase additional special functions
- 12 months support by email (required after expiration of the first year support included in AVDI package).
Clear step by step articles of AVDI procedures from a user perspective. Support desk manned by top AVDI professionals and fully integrated with the development team.
Support Plan can only be used with activated Annual Maintenance Subscription (AMS)
Special function for adapting electronic modules for VAG vehicles
VN002 - Parts AdaptationSpecial Function 2 500 €
If you own one or more functions from the bundle AN043, AN045, AN046, AN048, AN049, AN052, AN053, AN055, AN056, AN057 your price for VN002 will be the difference between the total price (2 500 €) and the sum of the prices of the functions you own, calculated on the following single prices:
AN043 – 100 €
AN045 – 150 €
AN046 – 100 €
AN048 – 250 €
AN049 – 400 €
AN052 – 600 €
AN053 – 250 €
AN055 – 100 €
AN056 – 450 €
AN057 – 100 €
Extracting and displaying immobilizer related data by diagnostic. Ability for alignment of immobilizer related data – cluster/ecu. Displaying immobilizer related data from dump of flash and eeprom of micronas mcu in IPC.
Read/Program memory of instrument cluster immobilizer
Read/Update immobilizer related data
Read/Update immobilizer data in VDO dashboards with NEC microcontroller (2009+) by OBDII
Extracting and displaying PIN code, control module configuration memory content, component security data from engine control units EDC16, MED9.x, Simos PPD 1.1/1.5, Magneti Marelli 4HV,7GV. Emergency start for engine control units EDC16. The whole EEPROM could be read for EDC15/ME7/EDC16. For MED9 and Simos engine control units only the PIN/CS/MAC is displayed.
Advanced Diagnostic Functionality - Ability to manage stored crash data and configuration memory of electronic control unit. Read/Update Config Data of airbag control units Siemens (CAN bus - ISO15765). Audi A6/Q7/Allroad, VW Golf5..., Skoda Octavia II ..., Seat Altea ... With this special function, you can Read/Update ConfData memory of the airbag module. Clear the crash data of the airbag module.
Covered units for Read/Update ConfData:
1. All Siemens CAN Airbags 2003-2008 like 4F0959655B (Audi A6/Q7/Allroad 2003-2008),
1K0909605AB, 1K0909605C, 1K0909605AD, etc...
2. K-Line Airbags (Siemens and Bosch) - 1C0 909 605 C, 8L0 959 655 A, 1J0 909 609, 6Q0 909
605 C,6Q0 909 605 A, 6Q0 909 605 B, 3B0 959 655 B, 1C0 909 605 F, 1C0 909 605 H, 1J0 909
607, 1J0 909 603, 4B0 959 655 C, 4B0 959 655 J, 4D0 959 655 C, 8L0 959 655 F,8A0 959 655
C, 8A0 959 655 K, 8A0 959 655 K, 4D0 959 655 H, 8D0 959 655 C, 8D0 959 655 L
Preparation of a key ready for adaptation by diagnostic to the vehicles with BCM2 – Audi A4, S4, RS4, A5, S5, RS5, A6, A7, A8, Q5 / VW Touareg
+ ILM Front passenger ((ILM Beifahrer) - Audi A8 2003-2010
Component protection generation 2
EZS-Kessy Audi A6/Q7 2004-2009 by OBDII
Comfort module Audi A6/Q7 2004-2009 by OBDII
Climantronic Audi A6/Q7 2004-2009 by OBDII
Airbag Audi A6/Q7 2004-2009 by OBDII
Airbag Audi A4/A5/Q5 2008+ from Bosch by OBDII
Instrument cluster Audi A6/Q7 2004-2009 by OBDII
Instrument Cluster Audi A4/A5/Q5 2008+ by OBDII
Infotainment electr. Audi A4/A5/Q5 2008+ by OBDII
- All other modules (e.g. DSP) with component protection generation 2
for A6/Q7 2004-2009 and A4/A5/A5 possible only if you have dump from gateway from where module was originally build
+ Adaptation of engine control units to the vehicle - EDC16,EDC17, MED17, MED9, Simos PPD, ME7.5.20, ME7.5.30
Kessy Audi A8/VW Touareg/Phaeton
Comfort module VW Passat B6/CC
Transmission gearbox Audi A6/Q7/Allroad/A8
EZS-Kessy Audi A6/Q7/Allroad
BCM2 immobilzier - Audi A4, S4, RS4, A5,S5, RS5, A6, A7, A8, Q5 / VW Touareg
+read the PIN and CS of the EDC17/MED17 engine control units. With this function is possible to read even engine control units 2012+ which are with
updated software and is not possible to read normally by OBDII.With this special function the EDC17/MED17 is not read through OBDII – you should have direct connection to the engine
control unit. It is possible to make this on the table, you need to connect only 12V, GND, Ignition, CAN-H and CAN-L. It is possible to read the ECU also in the car, but you need to find
somewhere the CAN-H (orange-black) and CAN-L (orange-brown) wires. So connect them to the AVDI and you will be able to read the engine control units.
+ adapt the transmission control unit (TCU) to the immobilizer (BCM2). For that purpose is necessary first to read the TCU. The TCU is not possible to be read by OBDII,
but is possible to read it when you connect the TCU on the table, or when you connect the AVDI to the internal CAN-Bus of the car.
To read from the internal CAN-Bus, find the orange/black and orange/brown CAN wires and make the following connection of the AVDI:
- orange/black CAN-H (PIN6 of the OBDII)
- orange/brown CAN-L (PIN14 of the OBDII)
- Ground GND (PIN4 of the OBDII)
- 12V 12V (PIN16 of the OBDII)
+reading the PIN/CS/MAC of the Simos PCR 2.1 engine control unit.
NOTE: This function requires internet access
New AVDI Interface or active AMS is required to purchase this special function.
Special function for learning keys to VAG vehicles
VN003 - Key Learning Special Function 3 150 €
If you own one or more functions from the bundle AN043, AN044, AN045, AN049, AN050, AN059 your price for VN003 will be the difference between the total price (3 150 €) and the sum of the prices of the functions you own, calculated on the following single prices:
AN043 – 100 €
AN044 – 700 €
AN045 – 150 €
AN049 – 400 €
AN050 – 900 €
AN059 – 900 €
+Extracting and displaying immobilizer related data by diagnostic. Ability for alignment of immobilizer related data – cluster/ecu. Displaying immobilizer related data from dump of flash and eeprom of micronas mcu in IPC
Read/Program memory of instrument cluster immobilizer
Read/Update immobilizer related data
Read/Update immobilizer data in VDO dashboards with NEC microcontroller (2009+) by OBDII
+ Extracting and displaying PIN code, control module configuration memory content, component security data from engine control units EDC16, MED9.x, Simos PPD 1.1/1.5, Magneti Marelli 4HV,7GV. Emergency start for engine control units EDC16. The whole EEPROM could be read for EDC15/ME7/EDC16. For MED9 and Simos engine control units only the PIN/CS/MAC is displayed.
+ This function will allow the preparation of a key ready for adaptation by diagnostic to the vehicles with BCM2 – Audi A4, S4, RS4, A5,S5, RS5, A6, A7, A8, Q5 / VW Touareg
+ Guided key adaptation functions, preparation keys suitable for the vehicle (dealer’s keys). Included are also Audi A6, Audi Q7, Audi Allroad, VW Crafter(with EDC16 ECU), VW Passat, (BCM2 based vehicles are supported only with the help of ABProg*)
Key programming/adaptation
Reading security code (PIN) and component protection by OBDII - VW CRAFTER
EZS - Kessy (Q7/A6/Allroad) - With this function you can prepare dealer key/learn dealer key- Read/Update ConfData from EZS - Kessy (Q7/A6/Allroad)
Programming keys by OBDII (VAG with 16 bytes Component Security) - VW Crafter, Audi R8, VW Golf 6, VW Multivan 2009+, VW EOS 2009+, VW Caddy 2009+, VW Scirocco, VW Polo 2009+, VW Bora 2010+, VW Jetta 2010+, Skoda Octavia II 2009+, Skoda Superb 2009+, Skoda Fabia 2009+, Skoda Yeti 2009+, Seat Leon 2009+, Seat Altea 2009+, Seat Exeo 2009+, Seat Ibiza 2009+, ...
Extracting of the 7th byte Component Security from a working key of the car (Megamos, Hitag2)
LAMBORGHINI GALLARDO
Key learning for Audi A6/A7/A8 with ALL KEYs LOST.
New AVDI Interface or active AMS is required to purchase this special function.
The function allows to replace immo-related parts in another vehicle, even when the brand is different or the power class is different.
The function works for the transmissions of Audi A6 2003-2010, Audi Q7 2005-2015, Audi A8 2003-2010,
and for all Immo III/IV engine control units where writing is not permitted. (EDC16/EDC17/ME7/MED9/MED17/Simos benzin/Simos PPD/Simos PCR/Magneti Marelli/Delphi). The function requires internet connection and a complete VN002.
Attention:
The VN005 special function requires an additional cable set (ZN052) that allows you to start and complete the operation. Each module that is adapted (TCU or ECU) will require an EM003 emulator to be built inside the car.
The function allows the programming of keys to ALL VEHICLES with Immo III/IV immobiliser systems and Megamos 48 transponders.
The function works both when there is a working key and in ALL KEYS LOST situations.
A ZN053 AVDI extractor cable IS REQUIRED when purchasing the special function.
The procedure also requires a ZN051 Distribution Box and an internet connection.
Mileage recalibration for vehicles based on the MQB platform from 2014 onwards.
Active AMS and internet connection are required!
| Audi A3/S3 2014+ | Audi Q2 |
| Seat LEON 07.2014+ | Skoda FABIA/OCTAVIA III 07.2014+ |
| Skoda RAPID 06.2015+ | Skoda KODIAQ/SUPERB III |
| Seat IBIZA/ATECA/TOLEDO 06.2015+ | Volkswagen Golf 7/Polo/Tiguan II/Touran II 07.2014+ |
| Volkswagen Crafter 2017+ | Volkswagen Passat B8 |
Key programming for vehicles based on the MQB platform. This includes all models starting from 2012 onwards.
PROTAG programmer, active AMS and internet connection are required.
Reading the PIN and Component Security of the Magneti Marelli 9GV ECU. Procedure is done by OBDII with a working key or on the bench (using the ZN051 Distribution Box without opening the ECU) when all keys are lost.
-Mileage recalibration for Audi A6/A7 (4G) and A8 (D4) and VW Touareg 7P produced from 2010 until 2017 BY OBDII.
The function works with UDS dashboards.
-Reading and updating internal control module configuration memory by diagnostics. Extracting and recalibration security access codes, PIN, component security bytes, current unit mileage values by K-line, CAN bus and UDS.
-Cluster CAN - With this function you can establish a disgnostic session with the instrument cluster using KWP2000 over TP2.0 or UDS. You can Read/Update the odometer values. Supported types are: - VDO/MM/Visteon -2007 (CAN TP2.0)- VDO with NEC μC 2009+ (CAN UDS)- JCI with NEC μC and 95320 EEPROM (CAN UDS)- Magneti Marelli with 9S12 μC (CAN UDS)- A8(4H)/A7(4G)/A6(4G)/Touareg(7P) with 95320 EEPROM (CAN UDS)
-Cluster K-Line - With this function you can establish a disgnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000); You can Read/update the odometer value; Read PIN code; Read/Update ConfData; Read ROM/Flash from the Instrument cluster; Automatic removing of "DEF error" for Audi A4 instrument cluster BOSCH RB8. Supported types are:- VDO66/86, Motometer- External Immobilizer - LT, VW GOL, VW O GOL( Kostal ), Siemens 6 PIN HC05 Immo/TMS- Audi A4 B5 with/without board computer -1997- Audi A6 -1997- Audi A8 -1999- Magneti Marelli - Shadow 1/2/3/Direct- VW Sharan/Galaxy -2000- Audi A4 Bosch RBx/RB4/RB4 Crypto/RB8 Crypto 2004+- Golf 4 Bosch RBx- VW Phaeton/Touareg, Bentley Continental, Porsche Cayenne- Seat Exeo Bosch RB8 Crypto 2008+- Lamborghini Gallardo -2005/2005+
-Read/Update ConfData (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
-Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8) - Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8)- Mileage Calibration (EDC15, EDC16)
-Mileage recalibration for Audi A6/A7 (4G) and A8 (D4) and VW Touareg 7P produced from 2010 until 2017 BY OBDII.
The function works with UDS dashboards.
-Reading and updating internal control module configuration memory by diagnostics.
Extracting and recalibration security access codes, PIN, component security bytes, current unit mileage values by K-line, CAN bus and UDS.
-Cluster CAN - With this function you can establish a disgnostic session with the instrument cluster using KWP2000 over TP2.0 or UDS.
You can Read/Update the odometer values. Supported types are: - VDO/MM/Visteon -2007 (CAN TP2.0)- VDO with NEC μC 2009+ (CAN UDS)- JCI with NEC μC and 95320 EEPROM (CAN UDS)- Magneti Marelli with 9S12 μC (CAN UDS)- A8(4H)/A7(4G)/A6(4G)/Touareg(7P) with 95320 EEPROM (CAN UDS)
-Cluster K-Line - With this function you can establish a disgnostic session with the Instrument cluster via K-Line
(KWP1281 or KWP2000); You can Read/update the odometer value; Read PIN code; Read/Update ConfData; Read ROM/Flash from the Instrument cluster;
Automatic removing of "DEF error" for Audi A4 instrument cluster BOSCH RB8. Supported types are:- VDO66/86, Motometer- External Immobilizer - LT,
VW GOL, VW O GOL( Kostal ), Siemens 6 PIN HC05 Immo/TMS- Audi A4 B5 with/without board computer -1997- Audi A6 -1997- Audi A8 -1999- Magneti Marelli - Shadow 1/2/3/Direct-
VW Sharan/Galaxy -2000- Audi A4 Bosch RBx/RB4/RB4 Crypto/RB8 Crypto 2004+- Golf 4 Bosch RBx- VW Phaeton/Touareg, Bentley Continental,
Porsche Cayenne- Seat Exeo Bosch RB8 Crypto 2008+- Lamborghini Gallardo -2005/2005+
-Read/Update ConfData (VAG-EDC15x, VAG-ME7.1.1, VAG-ME7.1, VAG-ME7.5, VAG-Cartronic ME7.8.)
-Extracting Security access code / PIN (EDC15, ME7.x, VAG-Cartronic ME7.8) - Extracting Component security bytes (EDC15, ME7.x, VAG-Cartronic ME7.8)- Mileage Calibration (EDC15, EDC16)
Replacement of ALL Component Protection-related modules by OBDII for Audi A6/A7/A8 (4G/4H) and VW Touareg (7P). Reading and updating the component protection bytes of the Lear Gateway, replace dashboards, infotainment, CEM and Climatronic modules.
Completing base settings, long coding helper with ALL descriptions, fully described adaptation channels. configuration change of second-hand modules, enable wireless CarPlay (for vehicles already fitted with CarPlay).
Reading of Component Security data from locked BCM2 modules for A4/A5/Q5 (2008-2016) and A6/A7/A8/Touareg (2010-2018) models.
Full set of mileage recalibration special functions for VAG.
Full set of special functions for VAG. The following hardware IS REQUIRED in order to obtain full functionality:
Full set of special functions for VAG. The following hardware IS REQUIRED in order to obtain full functionality:
ZN052 Abrites cable set for adapting IMMO parts used together with VN005
!!! NEW NEW NEW NEW NEW !!!

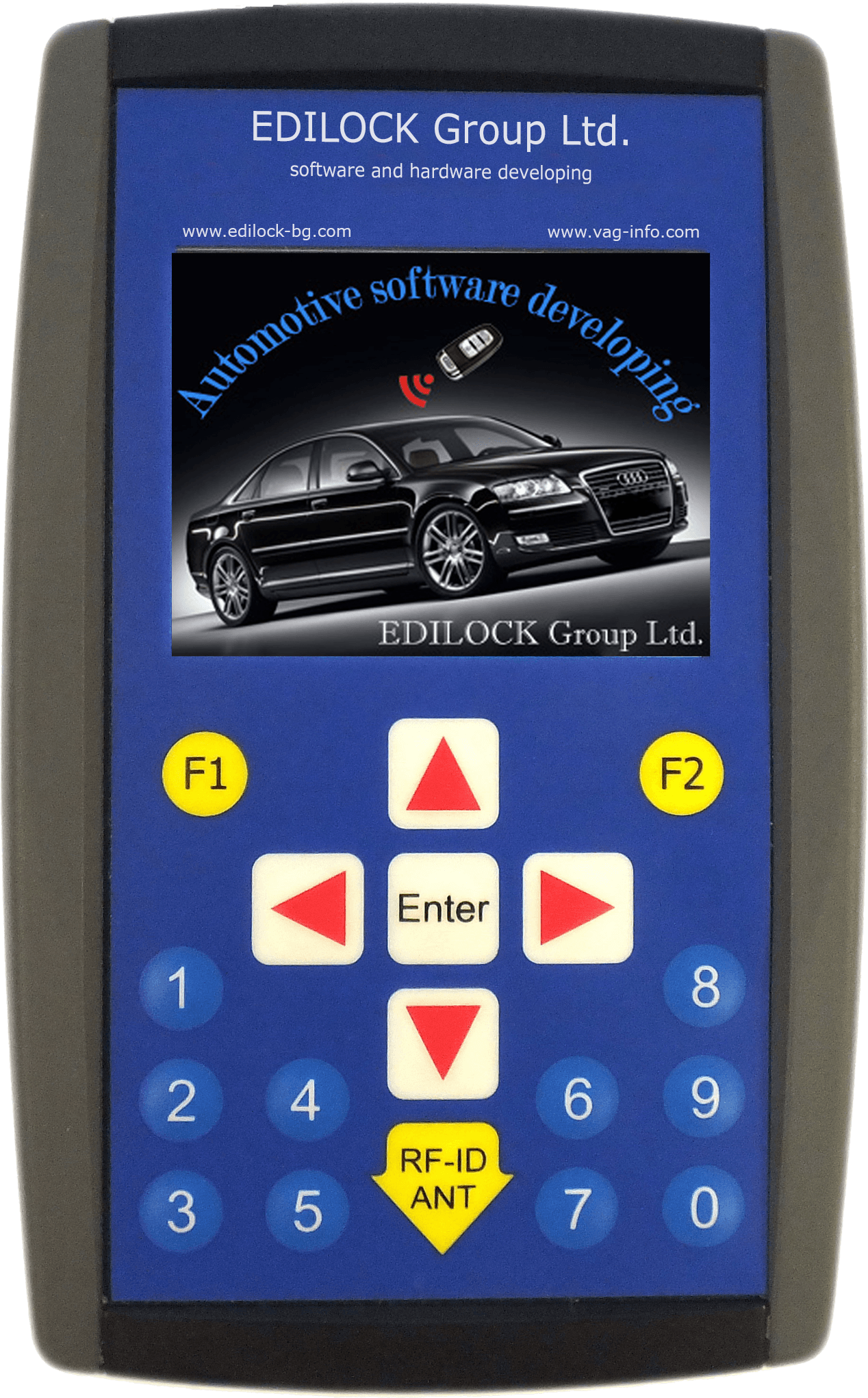

UNIVERSAL DISPLAY DEVICE V1.2
VAG Group Pin code reader and key programmer
1996 - 2008 year included
| Total quantity: | |
| Serial key: | |
| Attention! - Serial key is for cases when you have main product. If you haven't main product, buy it first. | |
